ASUS ROG CROSSHAIR X870E HERO

Asus ROG Crosshair X870E Hero AMD X870E Chipset AMD Ryzen AM5 Socket ATX Motherboard

Asus ROG Crosshair X870E Hero, AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*, Memory: 4 x DIMM, Max. 192GB, DDR5, Expansion Slots: 2 x PCIe 5.0 x16 slots, 2 x PCIe 4.0 x16 slots, Storage: 5 x M.2 slots and 6 x SATA 6Gb, Onboard VGA Output Available: 1xHDMI, 2xUSB4

Overview:

The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.

Features:

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button* for improved network performance.

Fast Check
Armoury Crate’s Fast Check empowers users to rapidly detect WiFi signal strength.

Direction Finder
Armoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

Gamefirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.

AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

Asynchronous Clock
Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

PBO ENHANCEMENT
By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

DDR5 Strength
For those who want to fly past stock DDR5 speeds, the ROG Crosshair X870E Hero is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

AEMP
AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

8 + 8-pin ProCool II power connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

18+2+2 power stages
The VRM features 18+2+2 power stages, each rated to handle up to 110 amps

10K black metallic capacitors
Input and output filtering is provided by solid-polymer capacitors rated for high operating temperatures.

MicroFine alloy chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

VRM and aluminum I/O heatsink
A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

M.2 heatsinks and backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard PCIe 5.0 M.2 slots has a dedicated backplate for additional heat dissipation.

Chipset heatsink
A dedicated heatsink draws heat away from both chipsets to maintain optimum operating temperature.

THERMAL MANAGEMENT
An extensive array of headers line the ROG Crosshair X870E Hero for precise cooling control and monitoring.

Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.

4-pin fan headers
In addition to the pair of CPU fan headers, the ROG Crosshair X870E Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.

AIO pump header
An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setups.

COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.

Five onboard M.2 Slots
The ROG Crosshair X870E Hero features five onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS Connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.

Expansion Slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the PCIe Slot Q-Release Slim.

TWO USB4® TYPE-C® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.

TWO USB 20Gbps TYPE-C FRONT-PANEL CONNECTORS
One of which features Quick Charge 4+ technology that can rapidly charge devices up to 60W*.

WIFI 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

Wireless Signal Reception Improvement
Versus previous-generation antenna

SupremeFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.

Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

PCIA Slot Q-release
With PCIe® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

M.2 Release
The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

M.2 Q-Slide
This new sliding M.2 latch design supports sizes 2242 and 2260 for easy device installation.

New M.2 Q-Latch
The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Q-Code
The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.

Start Button
This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.

Q-LED
Q-LED is a set of troubleshooting lights to give PC builders quick indicators to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. Q-LED can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.

BIOS Flashback & Clear CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

Advanced Mode
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

My Favorites
Quickly locate tuning options and add preferred tools to your favorites list.

EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.

S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.

GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase
Restore your SSDs and NVMe storage to factory settings.

Last Modified Log
Track the last change and save preferred profiles to a USB drive.

SATA Port Renaming
Rename SATA ports for easy identification.

ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.

Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.

Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

ASUS GlidEx
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.

AIDA64 Extreme
The ROG Crosshair X870E Hero includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.

Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

Glow your gaming world with aura sync
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ASUS ROG CROSSHAIR X870E HERO
Model	ROG CROSSHAIR X870E HERO
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870E
Memory	4 x DIMM slots, max.192GB, DDR5
	Supports up to
	8200+MT/s(OC) with Ryzen 9000 Series Processors
	8600+MT/s(OC) with Ryzen 8000 Series Processors
	8000+MT/s(OC) with Ryzen 7000 Series Processors
	ECC and Non-ECC, Un-buffered Memory
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO )
	NitroPath DRAM Technology
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port
	2 x USB4 (40Gbps) ports support USB Type-C display outputs
	Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	VGA resolution support depends on processors' or graphic cards' resolution.
	*Supports 4K@60Hz as specified in HDMI 2.1.
	**Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors
	2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes*)
	** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
	* When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
	** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
	AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
	2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
	AMD Ryzen 8500 & 8300 Series Desktop Processors
	2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
Storage	Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports
	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
	M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
	AMD X870E Chipset
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	SlimSAS slot supports PCIe 4.0 x4 mode.
	4 x SATA 6Gb/s ports
	** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
	*When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.
	AMD RAIDXpert2 Technology
	Ryzen 9000 Series Processors: RAID 0/1/5/10
	Ryzen 8000 Series Processors: RAID 0/1
	Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel 2.5Gb Ethernet
	1 x Realtek 5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band
	Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
	Bluetooth v5.4
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4 (40Gbps) ports (2 x USB Type-C)
	8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
	Front USB (Total 10 ports)
	1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)
	1 x USB 20Gbps connector (supports USB Type-C)
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	USB Type-C power delivery output: max. 5V/3A
	*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback on front panel
	Audio Features
	- SupremeFX Shielding Technology
	- ESS ES9219 QUAD DAC
	- Gold-plated audio jacks
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
	** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

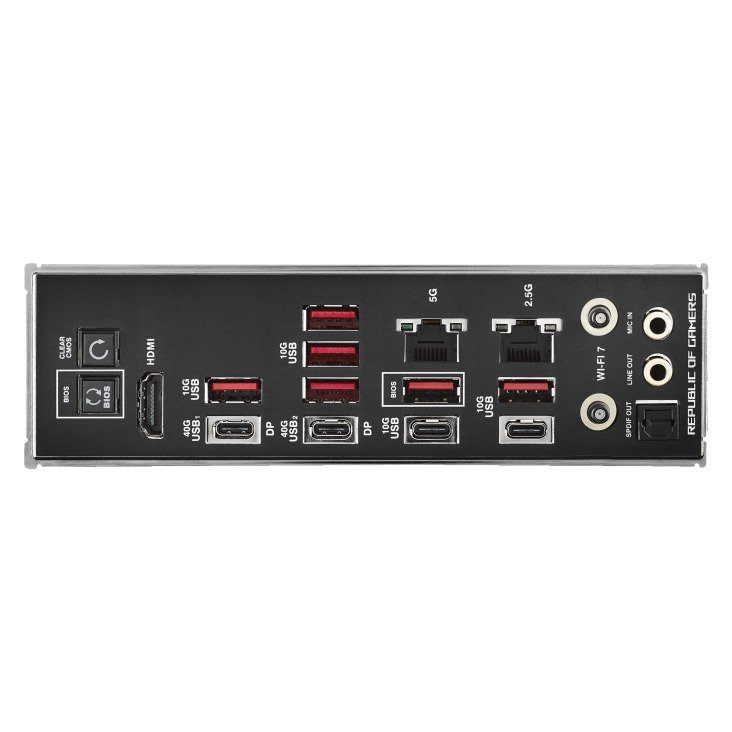

Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C)
	8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
	1 x HDMI port
	1 x Wi-Fi module
	1 x Intel 2.5Gb Ethernet port
	1 x Realtek 5Gb Ethernet port
	2 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connector
	1 x 8-pin PCIe Power connector
	Storage Related
	5 x M.2 slots (Key M)
	1 x SlimSAS connector
	4 x SATA 6Gb/s ports
	USB
	2 x USB 20Gbps connectors (support USB Type-C )
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen2 headers
	1 x Alteration PCIe mode switch
	1 x FlexKey button
	1 x Front Panel Audio header (F_AUDIO)
	1 x ReTry button
	1 x Start button
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header
	1 x LN2 Mode jumper
Special Features	Extreme OC Kit
	- FlexKey button
	- LN2 Mode
	- ReTry button
	- Start button
	Extreme Engine Digi+
	- 10K Black metallic capacitors
	- MicroFine alloy choke
	ASUS Q-Design
	- M.2 Q-Latch
	- M.2 Q-Release
	- M.2 Q-Slide
	- Q-Release Slim (with PCIe SafeSlot)
	- Q-Antenna
	- Q-Code
	- Q-Connector
	- Q-Dashboard
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsink
	- VRM heatsink design
	- Metal backplate
	ASUS EZ DIY
	- Backplate
	- BIOS FlashBack button
	- Clear CMOS button
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	Aura Sync
	- Addressable Gen2 header(s)
	Front Panel USB 20Gbps with Quick Charge 4+ Support
	- Support: up to 60W fast charging and USB Wattage Watcher
	- Output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A
	- Compatible with PD3.0 and PPS
	* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features	ROG Exclusive Software
	- ROG CPU-Z
	- Dolby Atmos
	- Internet Security (1-year full version)
	- Polymo Lighting II
	ASUS Exclusive Software
	Armoury Crate
	- AIDA64 Extreme (1 year full version)
	- Aura Creator
	- Aura Sync
	-Fan Xpert 4 (with AI Cooling II)
	- GameFirst
	- HWiNFO
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	WinRAR (40 Days Free Trial)
	Adobe Creative Cloud (Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
	FlexKey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	1 x ARGB RGB extension cable
	4 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x Q-connector
	2 x M.2 Q-Latch package
	3 x M.2 Q-Slide package
	5 x M.2 rubber package
	1 x ROG stickers
	1 x ROG thank you card
	1 x ROG Bottle Opener
	Installation Media
	1 x USB drive with utilities and drivers
	Documentation
	1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
