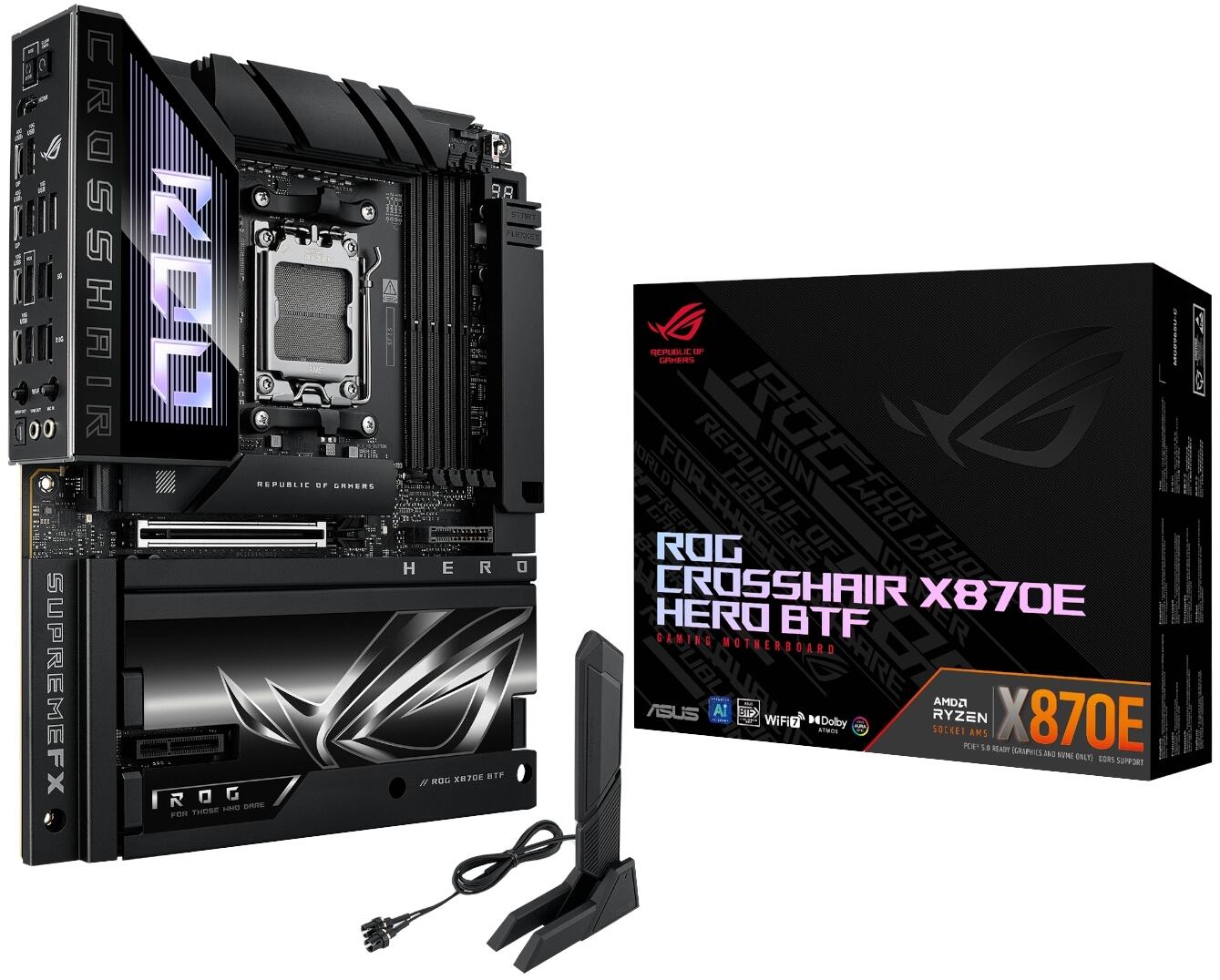

Asus ROG Crosshair X870E Hero BTF AMD AM5 ATX Gaming Motherboard

Asus ROG Crosshair X870E Hero BTF AMD AM5 ATX Gaming Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 2x USB4 (40Gbps) Ports support USB Type-C Display Outputs, 1x PCI-e 5.0 x16 slots with Q-Release Slim supports x16, 1x PCI-e 4.0 x4 slot, 5x M.2 slots supports up to PCI-e 5.0 x4 mode, 4x SATA 6Gb/s Ports, AMD RAIDXpert2 Technology, 1x Intel 2.5Gb Ethernet, 1x Realtek 5GB Ethernet, Wi-Fi 7, Bluetooth V5.4, USB 10Gbps Ports (Type-A + USB Type-C), ROG SupremeFX 7.1 Surround Sound High Definition Audio, 2x Gold-Plated Audio jacks, 1x Optical S/PDIF out Port, 1x BIOS FlashBack Button

Overview:

Next-Gen AM5 Performance with Clean Build Design
The ASUS ROG Crosshair X870E Hero BTF AM5 ATX gaming motherboard pushes modern PC building forward with a cable-free aesthetic and uncompromising performance. Built around the AMD X870E chipset, it supports Ryzen 9000, 8000 and 7000 Series processors, delivering high-end capability for gaming, streaming and demanding creative workloads. Its standout hidden-connector BTF design removes visible cables when paired with compatible components, resulting in a cleaner, more refined system build.

Designed for enthusiasts who expect both power and presentation, this motherboard integrates PCIe 5.0 support, advanced DDR5 memory tuning and robust power delivery. Polymo Lighting II enhances the visual experience with dynamic RGB effects, while high-speed connectivity and premium onboard audio ensure a fully immersive system.

Description:

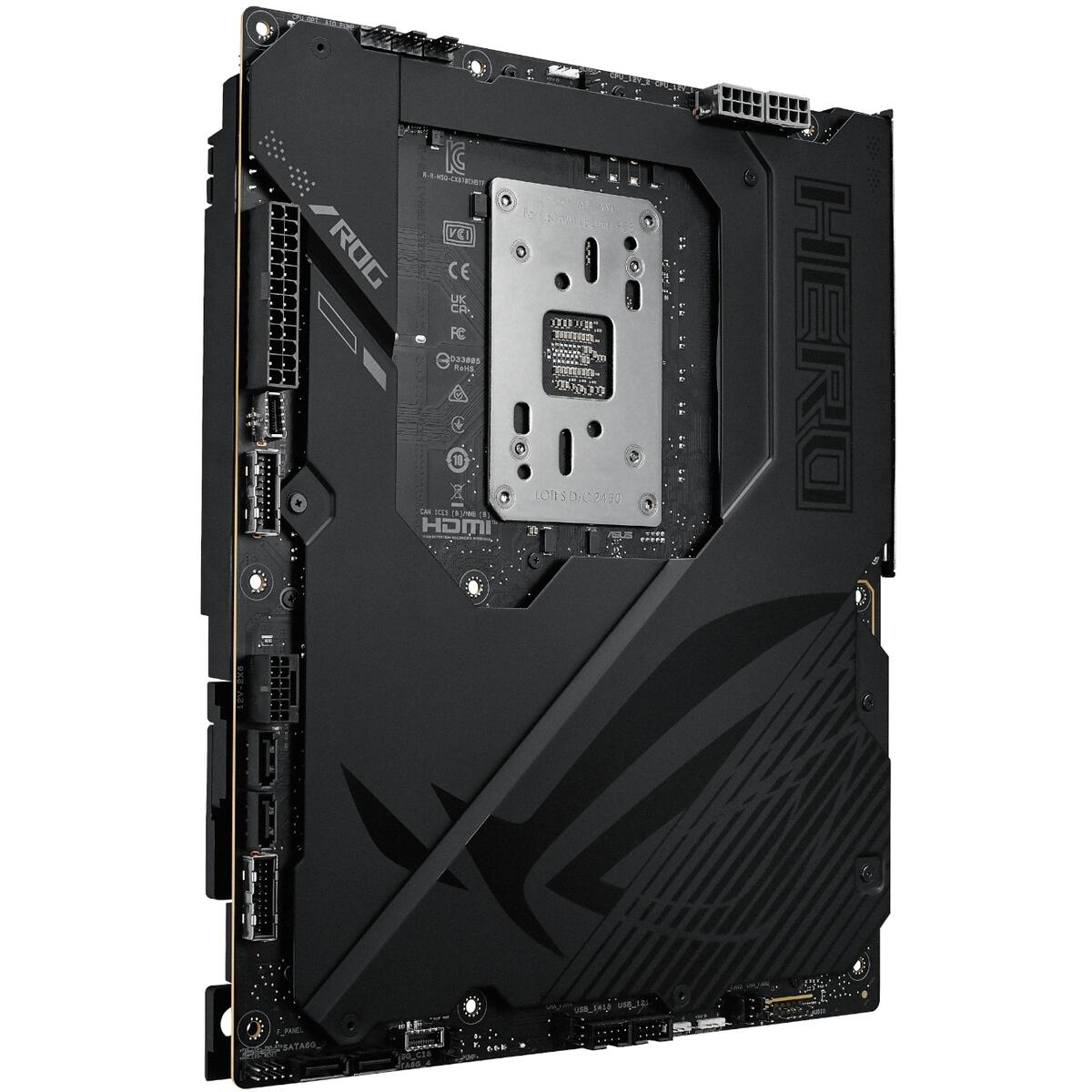

The ROG Crosshair X870E Hero BTF is engineered for high-performance AMD builds with a focus on clean cable management and advanced connectivity. It supports ultra-fast DDR5 memory, next-generation PCIe 5.0 graphics and storage, and features up to five M.2 slots for flexible storage expansion. Integrated Wi-Fi 7, dual high-speed Ethernet and USB4 connectivity provide exceptional networking and data transfer speeds. Combined with premium audio hardware and intelligent tuning tools, this motherboard is ideal for gamers and creators who want top-tier performance with a streamlined, visually clean build.

Features:

Built for High-Speed Memory and Processing
Memory performance is a core strength, with support for up to 256GB of DDR5 across four DIMM slots. Speeds exceed 8000MT/s depending on processor generation, supported by technologies such as AMD EXPO, AEMP and NitroPath DRAM tuning. This ensures stable overclocking and efficient multitasking under heavy workloads.

The AM5 platform provides long-term upgrade flexibility, while the X870E chipset enables PCIe 5.0 bandwidth for next-generation GPUs and storage devices.

Storage and Expansion Flexibility
This board accommodates demanding storage configurations with multiple high-speed interfaces:

• Up to 5 M.2 slots including PCIe 5.0 x4 support for ultra-fast NVMe SSDs
• 4 SATA 6Gb/s ports for additional drives and mass storage
• AMD RAIDXpert2 support for RAID 0, 1, 5 and 10 depending on CPU

Expansion is equally capable, offering a PCIe 5.0 x16 slot with Q-Release Slim for easy GPU installation, alongside an additional PCIe 4.0 x4 slot for expansion cards.

Advanced Connectivity and Networking
Connectivity is built for modern workloads and high-bandwidth applications:

• Dual USB4 Type-C ports with up to 40Gbps transfer speeds
• Multiple USB 10Gbps ports for peripherals and storage
• Wi-Fi 7 with 320MHz bandwidth support
• Bluetooth 5.4 for stable wireless device connections
• Dual Ethernet with 2.5Gb and 5Gb ports for high-speed networking

These options ensure low latency, fast transfers and reliable connectivity whether gaming online or transferring large files.

Immersive Audio and Visual Output
The integrated ROG SupremeFX audio solution delivers high-definition sound with support for 32-bit/384kHz playback. Backed by the ALC4082 codec and ESS ES9219 QUAD DAC, it provides clear output for gaming, streaming and media consumption.

Display connectivity includes:

• HDMI with 4K support at 60Hz
• USB4 Type-C display output compatibility

This ensures flexibility across different display setups.

Thermal Design and Intelligent Control
Efficient cooling is supported through multiple fan headers, pump connectors and onboard thermal monitoring. Large heatsinks and backplate design help maintain stable temperatures under load, while ASUS tuning utilities provide granular control over system performance and cooling profiles.

Key Technical Highlights

• Model: ROG Crosshair X870E Hero BTF
• Part Number / SKU: ROGCROSSHAIRX870EHEROBTF
• Socket: AMD AM5
• Chipset: AMD X870E
• Form Factor: ATX
• Memory: Up to 256GB DDR5, quad DIMM
• Expansion: PCIe 5.0 x16, PCIe 4.0 x4
• Storage: 5 x M.2, 4 x SATA
• Networking: Wi-Fi 7, 2.5Gb + 5Gb Ethernet
• USB: USB4 40Gbps and USB 10Gbps support
• Audio: ROG SupremeFX 7.1 HD audio

Whats' include

• ROG Crosshair X870E Hero BTF motherboard
• SATA cables and mounting accessories
• Wi-Fi antenna
• M.2 installation kits and connectors
• USB drive with drivers and utilities
• Quick start guide

Engineered for Clean, High-End Builds
With its hidden-connector layout, cutting-edge connectivity and strong performance foundation, this motherboard is suited for users building a premium AMD system. The combination of advanced memory support, extensive storage options and next-generation networking makes it a reliable base for both gaming rigs and professional workstations.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ROGCROSSHAIRX870EHEROBTF
Model	ROG CROSSHAIR X870E HERO BTF
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870E
Memory	4 x DIMM slots, max.256GB, DDR5
	Supports up to
	8200+MT/s(OC) with Ryzen 9000 Series Processors
	8600+MT/s(OC) with Ryzen 8000 Series Processors
	8000+MT/s(OC) with Ryzen 7000 Series Processors
	ECC and Non-ECC, Un-buffered Memory
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO )
	Supports DIMM Fit and DIMM Fit Pro
	NitroPath DRAM Technology
	ASUS Enhanced Memory Profile (AEMP)
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port
	2 x USB4 (40Gbps) ports support USB Type-C display outputs
	Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	VGA resolution support depends on processors' or graphic cards' resolution.
	*Supports 4K@60Hz as specified in HDMI 2.1.
	**Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors
	1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**)
	**When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.
	AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
	1 x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8)
	AMD Ryzen 8500 & 8300 Series Desktop Processors
	1 x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4)
	AMD X870E Chipset
	1 x PCIe 4.0 x4 slot
Storage	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
	AMD Ryzen 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	AMD Ryzen 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
	M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
	AMD X870E Chipset
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.
RAID Support	AMD RAIDXpert2 Technology
	Ryzen 9000 Series Processors: RAID 0/1/5/10
	Ryzen 8000 Series Processors: RAID 0/1
	Ryzen 7000 Series Processors: RAID 0/1/10
	* Specifications vary by CPU types.
Ethernet	1 x Intel 2.5Gb Ethernet
	1 x Realtek 5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7 (MediaTek MT7927)
	2x2 Wi-Fi 7* (802.11be)
	Supports 2.4/5/6GHz frequency band
	Supports Wi-Fi 7 320MHz bandwidth
	Bluetooth v5.4
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports)
	2 x USB4 (40Gbps) ports (2 x USB Type-C)
	8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
	Front USB (Total 10 ports)
	2 x USB 20Gbps connector (supports USB Type-C)
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	USB Type-C power delivery output: max. 5V/3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback on front panel
	Audio Features
	- SupremeFX Shielding Technology
	- ESS ES9219 QUAD DAC
	- Gold-plated audio jacks
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
	** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C)
	8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
	1 x HDMI port
	1 x Wi-Fi module
	1 x Intel 2.5Gb Ethernet port
	1 x Realtek 5Gb Ethernet port
	2 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connector
	1 x Graphics card high power slot
	1 x 12V-2X6 Auxiliary power connector
	Storage Related
	5 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	2 x USB 20Gbps connectors (support USB Type-C )
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen2 headers
	1 x Alteration PCIe mode switch
	1 x FlexKey button
	1 x Front Panel Audio header (F_AUDIO)
	1 x Start button
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header
Special Features	Extreme OC Kit
	- FlexKey button
	- Start button
	Extreme Engine Digi+
	- 10K Black metallic capacitors
	- MicroFine alloy choke
	ASUS Q-Design
	- M.2 Q-Latch
	- M.2 Q-Release
	- M.2 Q-Slide
	- Q-Release Slim (with PCIe SafeSlot)
	- Q-Antenna
	- Q-Code
	- Q-Connector
	- Q-Dashboard
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsink
	- VRM heatsink design
	- Metal backplate
	ASUS EZ DIY
	- Backplate
	- BIOS FlashBack button
	- Clear CMOS button
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	Aura Sync
	- Addressable Gen2 header(s)
Software Features	ROG Exclusive Software
	- ROG CPU-Z
	- Dolby Atmos
	- Internet Security (1-year full version)
	- Polymo Lighting II
	ASUS Exclusive Software
	Armoury Crate
	- AIDA64 Extreme (1 year full version)
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- GameFirst
	- HWiNFO
	ASUS AI Advisor
	ASUS DriverHub
	ASUS GlideX
	TurboV Core
	WinRAR (40 Days Free Trial)
	Adobe Creative Cloud (Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
	FlexKey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME
Accessories	Cables
	1 x ARGB RGB extension cable
	4 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x Q-connector
	2 x M.2 Q-Latch package
	3 x M.2 Q-Slide package
	5 x M.2 rubber package
	1 x ROG stickers
	1 x ROG thank you card
	1 x ROG Bottle Opener
	Installation Media
	1 x USB drive with utilities and drivers
	Documentation
	1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
