SC-AX6800XT-TO

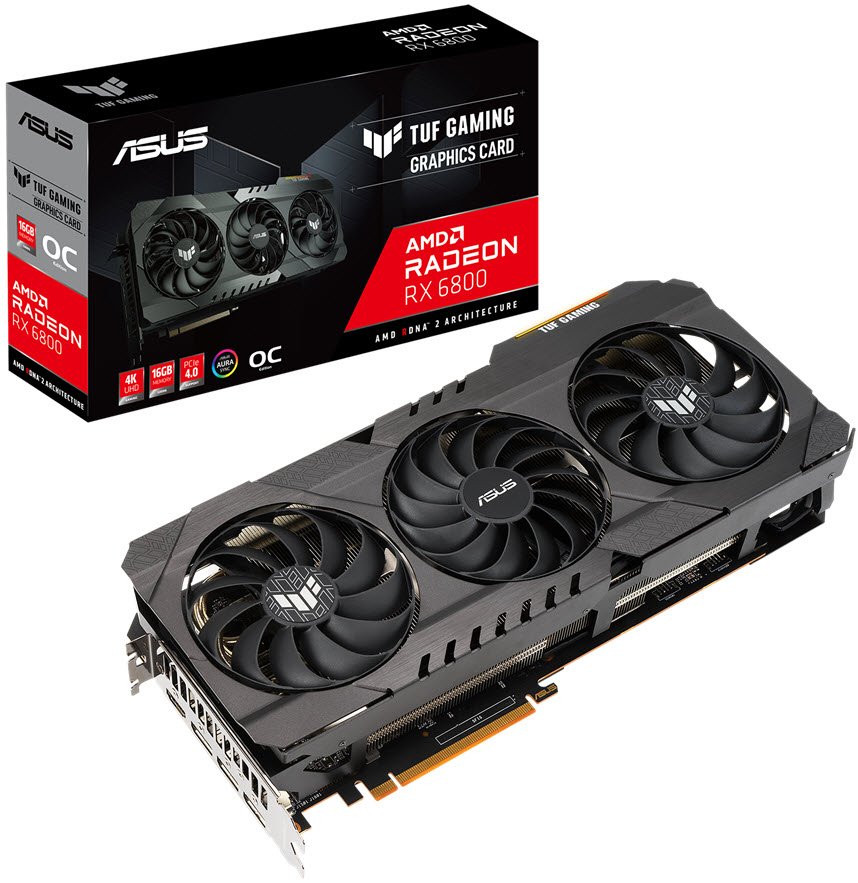

Asus TUF GAMING AMD Radeon RX 6800 16GB GDDR6 256-bit Graphics Card

Asus - Asus AMD Radeon RX 6800, Connections: 1x HDMI, 3xDP, OC Mode: up to 2190 MHz (Boost Clock)/ 1980 MHz (Game Clock), Gaming mode: up to 2155 MHz (Boost Clock)/ 1925 MHz (Game Clock), 31 x 14.02 x 5.78 Centimeter. 16GB, GDDR6, Multview: 4 Monitors.
BUY NOW - selling fast! Limited Stock at suppliers.* print


Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. SC-AX6800XT-TO Asus TUF GAMING AMD Radeon RX 6800 16GB GDDR6 256-bit Graphics Card is available from Asus Laptops and it is sold as new from our AMD PCIe x16 Graphics cards range of products. For reference purposes, the price of R26205 is valid 2026-07-28, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the AMD PCIe x16 Graphics cards category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

SC-AX6800XT-TO

Asus TUF GAMING AMD Radeon RX 6800 16GB GDDR6 256-bit Graphics Card

Asus AMD Radeon RX 6800, Connections: 1x HDMI, 3xDP, OC Mode: up to 2190 MHz (Boost Clock)/ 1980 MHz (Game Clock), Gaming mode: up to 2155 MHz (Boost Clock)/ 1925 MHz (Game Clock), 31 x 14.02 x 5.78 Centimeter. 16GB, GDDR6, Multview: 4 Monitors.

Graphics card basics

  • GPU: AMD Radeon RX 6800
  • GPU CODE: ASUS TUF-RX6800-O16G-GAMING
  • Stream processors (SP): 3840
  • Engine clock (min ~ max MHz): 1925 ~ 2190 MHz
  • Video memory (size, speed and type): 16GB, 16000 MHz, GDDR6
  • Memory bus (bit): 256-bit
  • Memory clock (MHz): 16000
  • Bus Standard: PCI Express 4.0
  • Over-clock-able: Yes
  • Max. number of monitors: 4
  • Dimension in cm: 32 x 14.02 x 5.78
  • Slot: 2.9 Slot
  • PSU recommended: 650W
  • Power connector: 2 x 8-pin
  • Maximum digital resolution (pixels): 7680 x 4320
  • Type - Port 1: HDMI 2.1
  • Type - Port 2: DisplayPort 1.4a
  • Type - Port 3: DisplayPort 1.4a
  • Type - Port 4: DisplayPort 1.4a
  • Suggested uses: 4K gaming, streaming, video editing, high-performance rendering, VR

Features:

Built TUF
The TUF GAMING Radeon™ RX 6800 is a tenacious beast with a tough metal exterior, super-efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses three powerful axial-tech fans with dual ball fan bearings and extra blades. Under the exoskeleton, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine... this one is ready for action.

Bigger, Better Cooling
This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations.

Quiet Cunning
To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. Fans will also only start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 55 Celsius, helping to reduce noise when the system is idling or under light load.

MaxContact
To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

2.9-slot Design
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint.

TUF Components
Robust military-grade capacitors were selected for the card’s power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

Metal Coat
A machined all-aluminum shroud creates a robust outer shell and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

Armored Underside
The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.

Functional Front
The front-side RGB element can be customized to display a range of aesthetic and functional effects, and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the Radeon RX 6800, two 8-pin power connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly. Structural pillars of a built-in reinforced metal frame are also visible here and add a literal layer of durability.

GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Radeon Software
The latest Radeon™ Software Adrenalin 2020 Edition unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.

WTFast
We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card - and don't be left waiting!

XSplit/ Gamecaster
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!

Quantumcloud
Quantumcloud is a simple and secure service that lets you effortlessly earn extra money by putting your idle GPU to work. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact because Quantumcloud doesn't collect your personal data. Get started making money today!

Powerhouse Performance
AMD Radeon™ RX 6800 Series graphics cards deliver ultra-high frame rates and serious 4K visuals. Get breathtaking gaming experiences with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

Vivid Visuals
AMD Radeon™ RX 6800 Series graphics cards pull you into the action with immersive gaming technologies and support for DirectX® 12 Ultimate. Experience realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.

Elevated Experiences
Instant responsiveness and smooth gaming are leveled-up with low-latency technology from AMD Radeon Anti-Lag and AMD Radeon Boost. Propel your gaming experience with the latest HDMI™ 2.1 VRR technology, USB-C™ enabled VR headsets, or over 1250 AMD FreeSync™ technology-enabled gaming displays.

FidelityFX Contrast Adaptive Sharpening
Contrast Adaptive Sharpening (CAS) helps increase visual quality with optional upscaling that restores detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

FidelityFX Ambient Occlusion
AMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based on their exposure to ambient light.

FidelityFX Variable Shading
AMD RDNA™ 2 architecture supports variable rate shading (VRS) to analyze luminance and frame motion to help optimize rendering for better performance without lowering image quality.

DirectX® Raytracing
DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on AMD Radeon™ RX 6000 series graphics, thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing.

Specifications:

© 2021 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code ASUS TUF-RX6800-O16G-GAMING
Graphic Engine AMD Radeon RX 6800
Bus Standard PCI Express 4.0
OpenGL OpenGL 4.6
Video Memory 16GB GDDR6
Engine Clock OC mode : up to 2190 MHz (Boost Clock)/ 1980 MHz (Game Clock)
Gaming mode : up to 2155 MHz (Boost Clock)/ 1925 MHz (Game Clock)
OC mode : up to 2190 MHz (Boost Clock)/ 1980 MHz (Game Clock)
Gaming mode : up to 2155 MHz (Boost Clock)/ 1925 MHz (Game Clock)
OC mode : up to 2190 MHz (Boost Clock)/ 1980 MHz (Game Clock)
Gaming mode : up to 2155 MHz (Boost Clock)/ 1925 MHz (Game Clock)
Stream Processors 3840
Memory Speed 16 Gbps
Memory Interface 256-bit
Resolution Digital Max Resolution 7680 x 4320
Interface Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support 4
NVlink/ Crossfire Support Yes
Accessories 1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup manual
1 x ASUS ruler
Software ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions 13 " x 5.52 " x 2.28 " Inch
32 x 14.02 x 5.78 Centimeter
Recommended PSU 650W
Power Connectors 2 x 8-pin
Slot 2.9 Slot
Note Crossfire Support - Yes for DirecX 12 and Vulkan
