MB-AZ690PA

Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard

Asus - Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard, Z690 Chipset, 4x DIMM Memory slots, 1x DisplayPort, 1x HDMI Port, 1x PCI-e 5.0/4.0/3.0 x16 slots, 1x PCI-e 3.0 x16 slot (Supports x4 mode), 1x PCI-e 3.0 x4 slot, 2x PCI-e 3.0 x1 slots, Supports 4 x M.2 slots and 4x SATA 6Gb/s Ports, 1x Intel 2.5GB Ethernet, 1x USB 3.2 Gen 2x2 Ports (1x USB Type-C), 3x USB 3.2 Gen 2 Ports (2x Type-A + 1x USB Type-C), 4x USB 3.2 Gen 1 Ports (4x Type-A), Realtek S1220a 7.1 surround sound high definition audio, 5x audio jacks, 1x optical S/PDIF out Port
BUY NOW - selling fast! Limited Stock at suppliers.* print

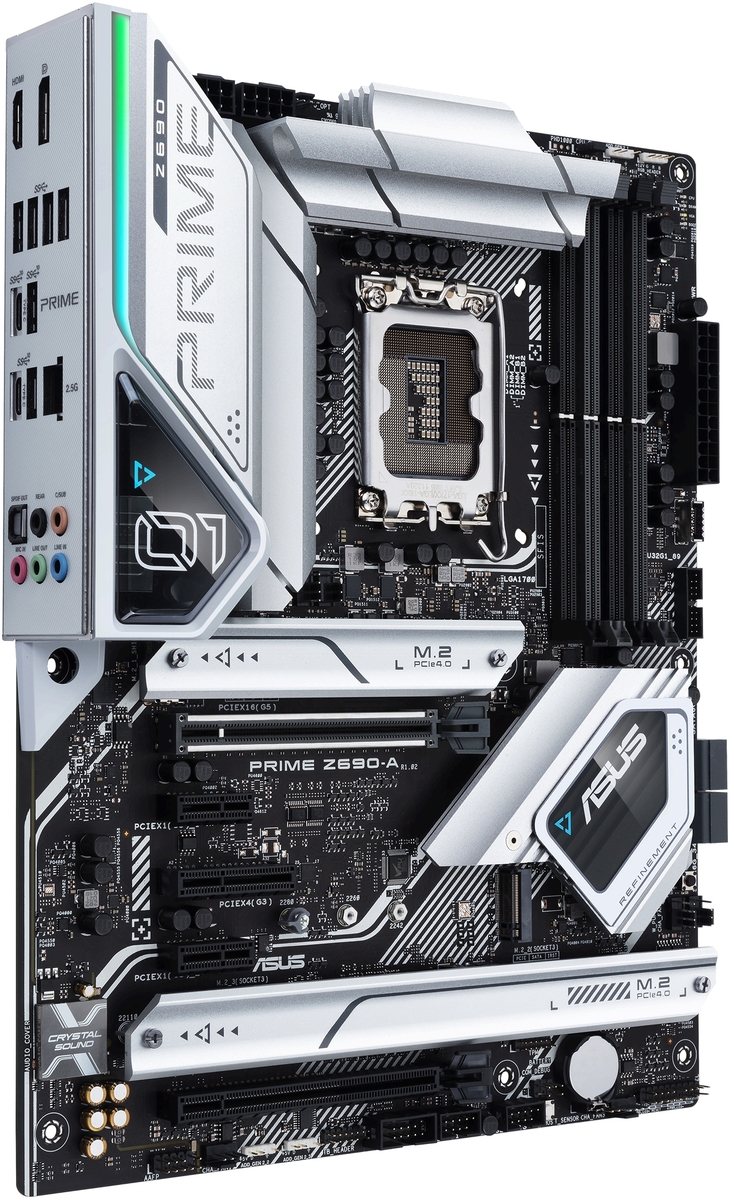

MB-AZ690PA Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard Image 2

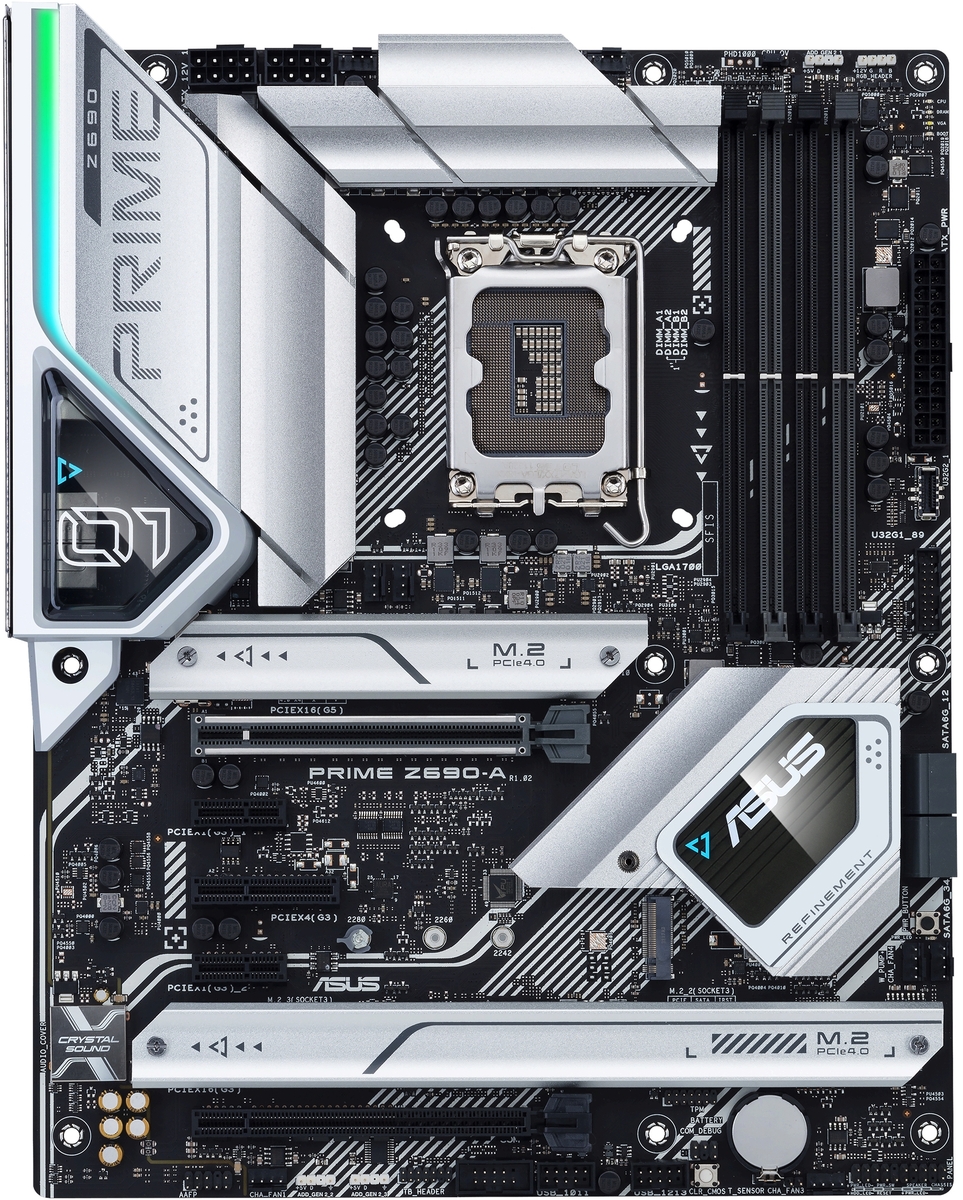

MB-AZ690PA Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard Image 3

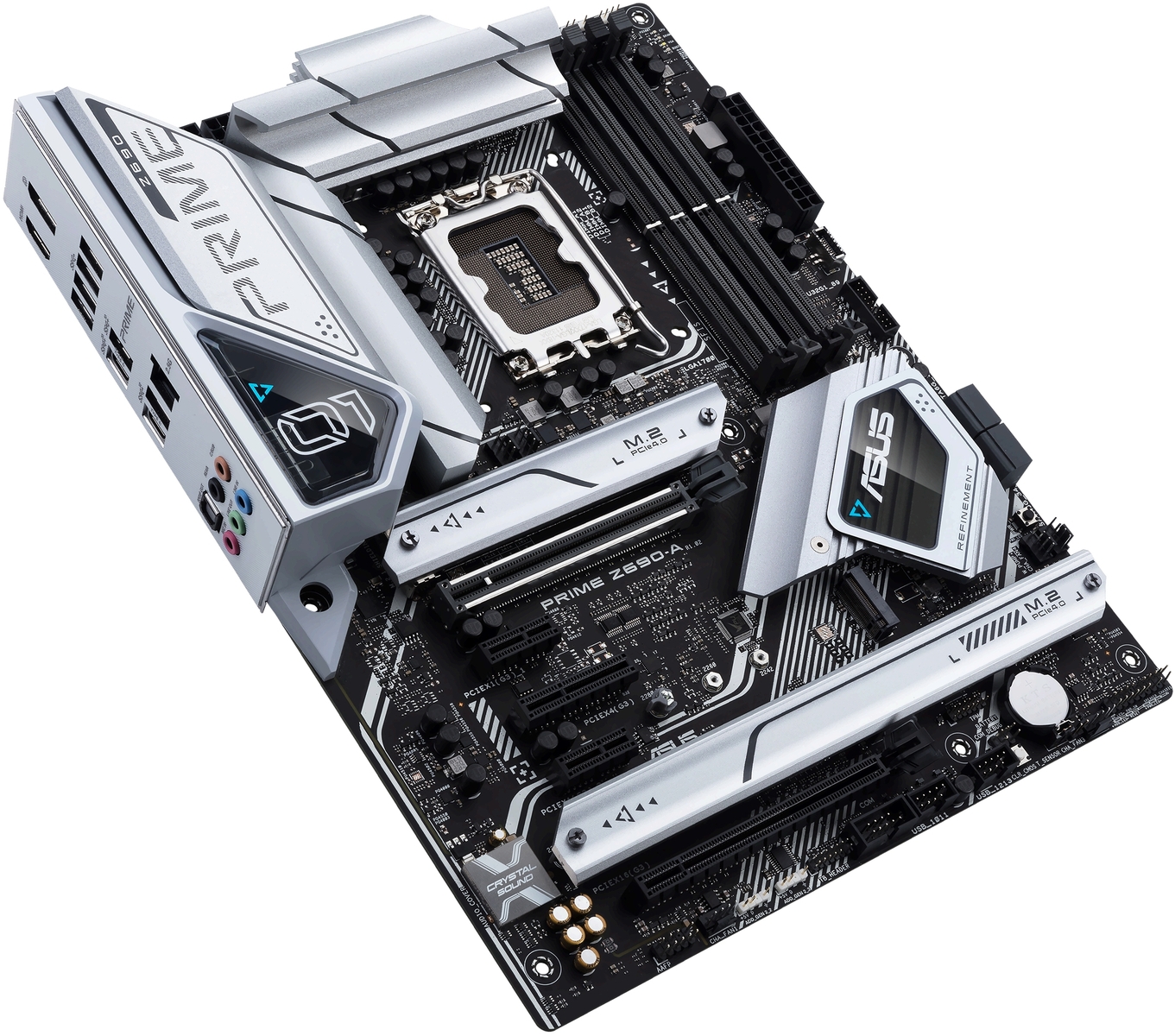

MB-AZ690PA Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard Image 4
MB-AZ690PA Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard Image 5
Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. MB-AZ690PA Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard is available from Asus Laptops and it is sold as new from our Motherboards: Intel LGA1700 12th/13th/14th gen range of products. For reference purposes, the price of R5875 is valid 2026-08-27, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Motherboards: Intel LGA1700 12th/13th/14th gen category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

MB-AZ690PA

Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard

Asus Prime Z690-A Intel 12th Gen Socket LGA 1700 ATX Motherboard, Z690 Chipset, 4x DIMM Memory slots, 1x DisplayPort, 1x HDMI Port, 1x PCI-e 5.0/4.0/3.0 x16 slots, 1x PCI-e 3.0 x16 slot (Supports x4 mode), 1x PCI-e 3.0 x4 slot, 2x PCI-e 3.0 x1 slots, Supports 4 x M.2 slots and 4x SATA 6Gb/s Ports, 1x Intel 2.5GB Ethernet, 1x USB 3.2 Gen 2x2 Ports (1x USB Type-C), 3x USB 3.2 Gen 2 Ports (2x Type-A + 1x USB Type-C), 4x USB 3.2 Gen 1 Ports (4x Type-A), Realtek S1220a 7.1 surround sound high definition audio, 5x audio jacks, 1x optical S/PDIF out Port

Overview:

PRIME Z690-A
Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI, DisplayPort, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting
  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
  • AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
  • Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
  • Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2

Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeMB-AZ690PAspacer
CPUSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetZ690
Memory4 x DIMM, Max. 128GB, DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
Graphics1 x DisplayPort
1 x HDMI port
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion SlotsIntel 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel Z690 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports Intel Optane Memory H Series on PCH-attached PCIE slot.
StorageSupports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel Z690 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Ethernet1 x Intel 2.5Gb Ethernet
ASUS LANGuard
USBRear USB:Total 8 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C )
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
AudioRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

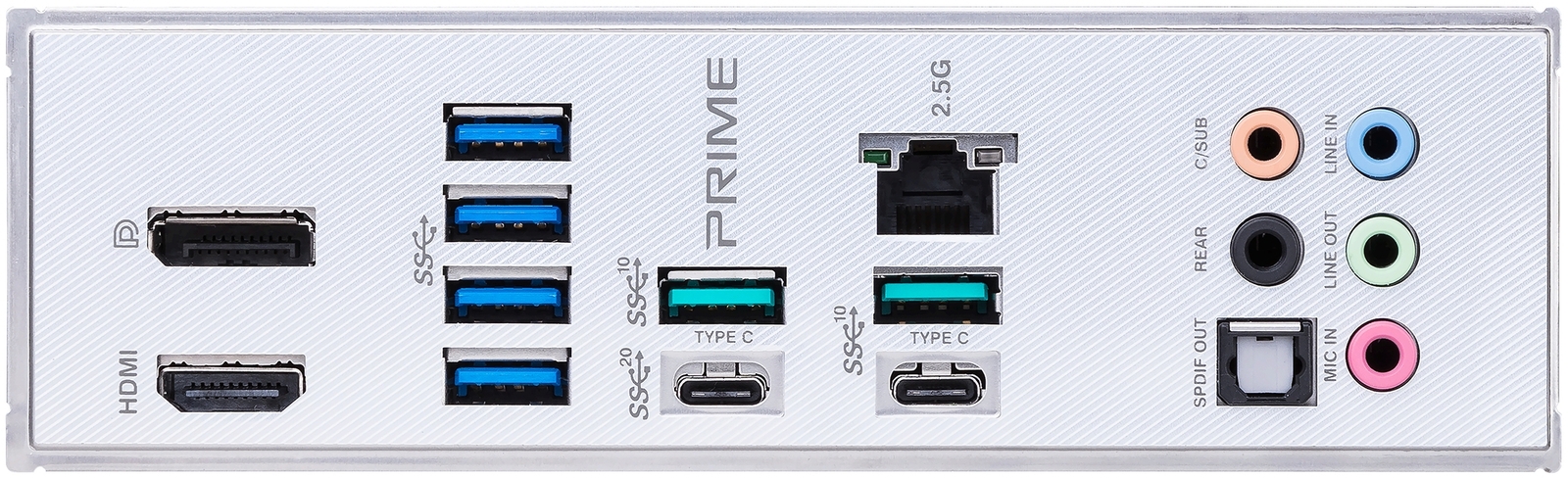

Back Panel I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C )
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Special FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box headers
- Clear CMOS button
- CPU socket lever protector
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Software FeaturesASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
-Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Turbo app
ASUS CPU-Z
DTS:X Ultra
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
AccessoriesCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package(s)
1 x Q-connector
1 x M.2 Q-Latch package(s)
Installation Media
1 x Support DVD
Documentation
1 x User guide
Form FactorATX
30.5cm x 24.4cm
