Overview:

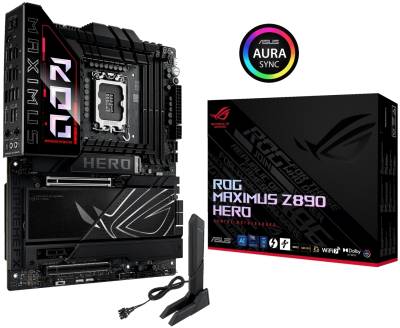

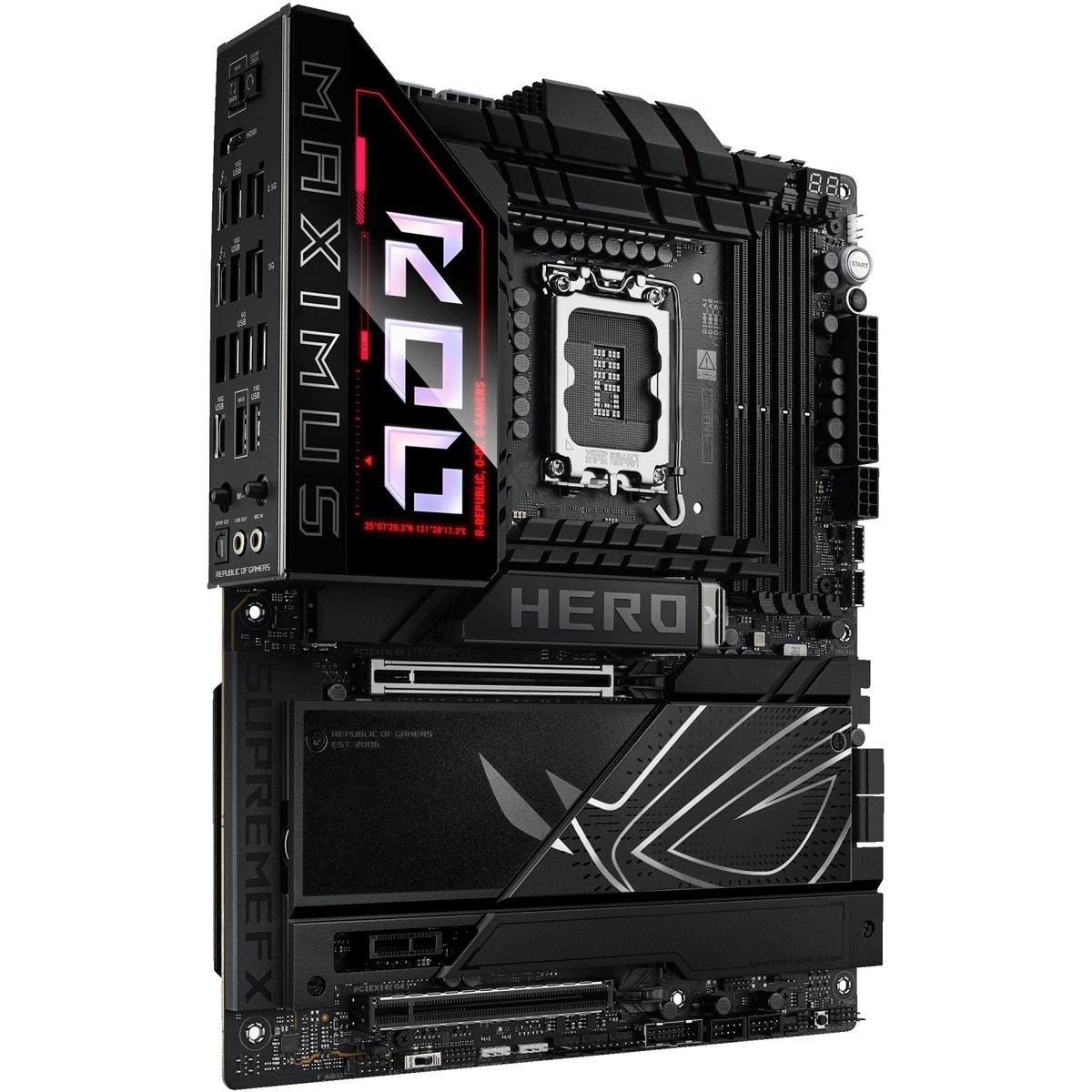

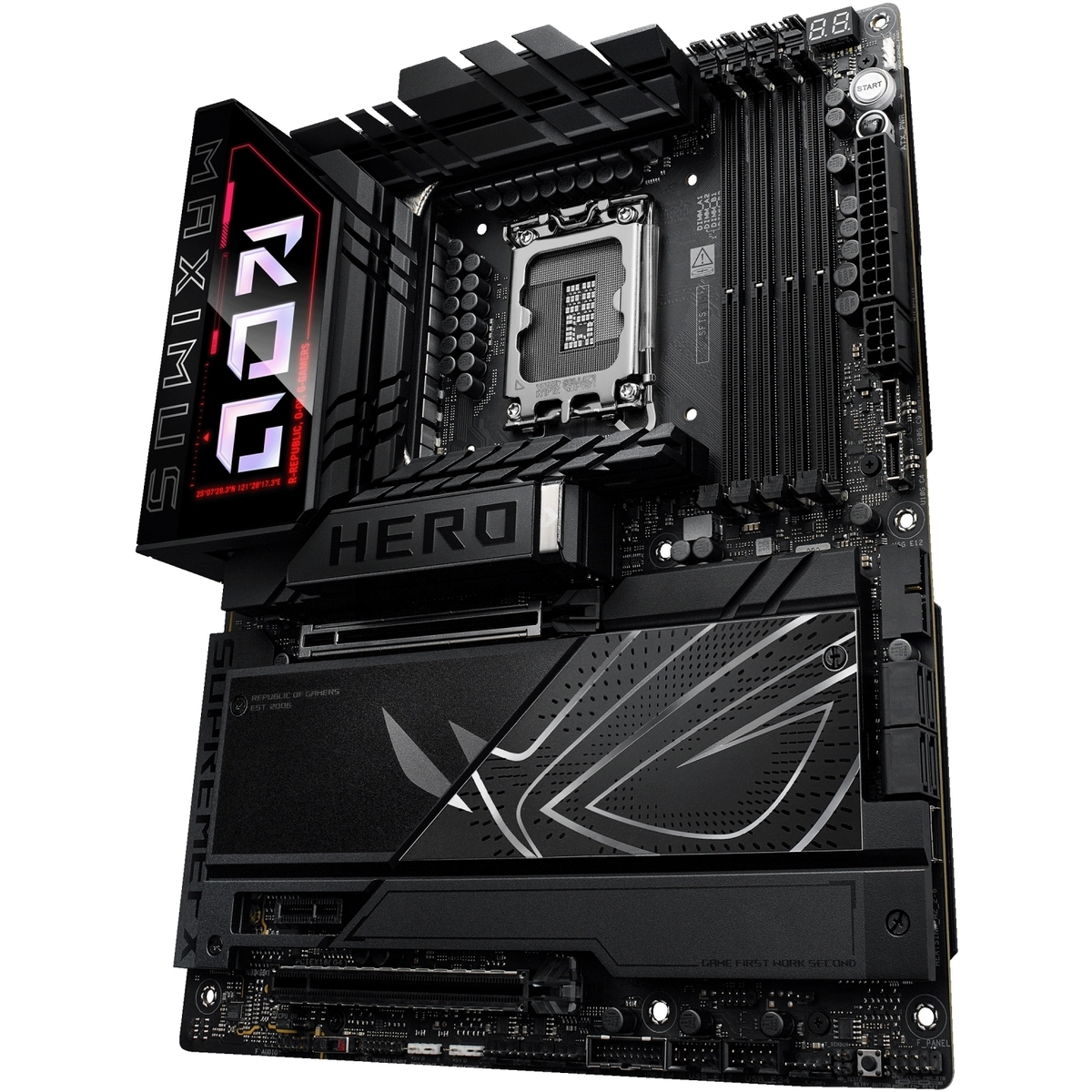

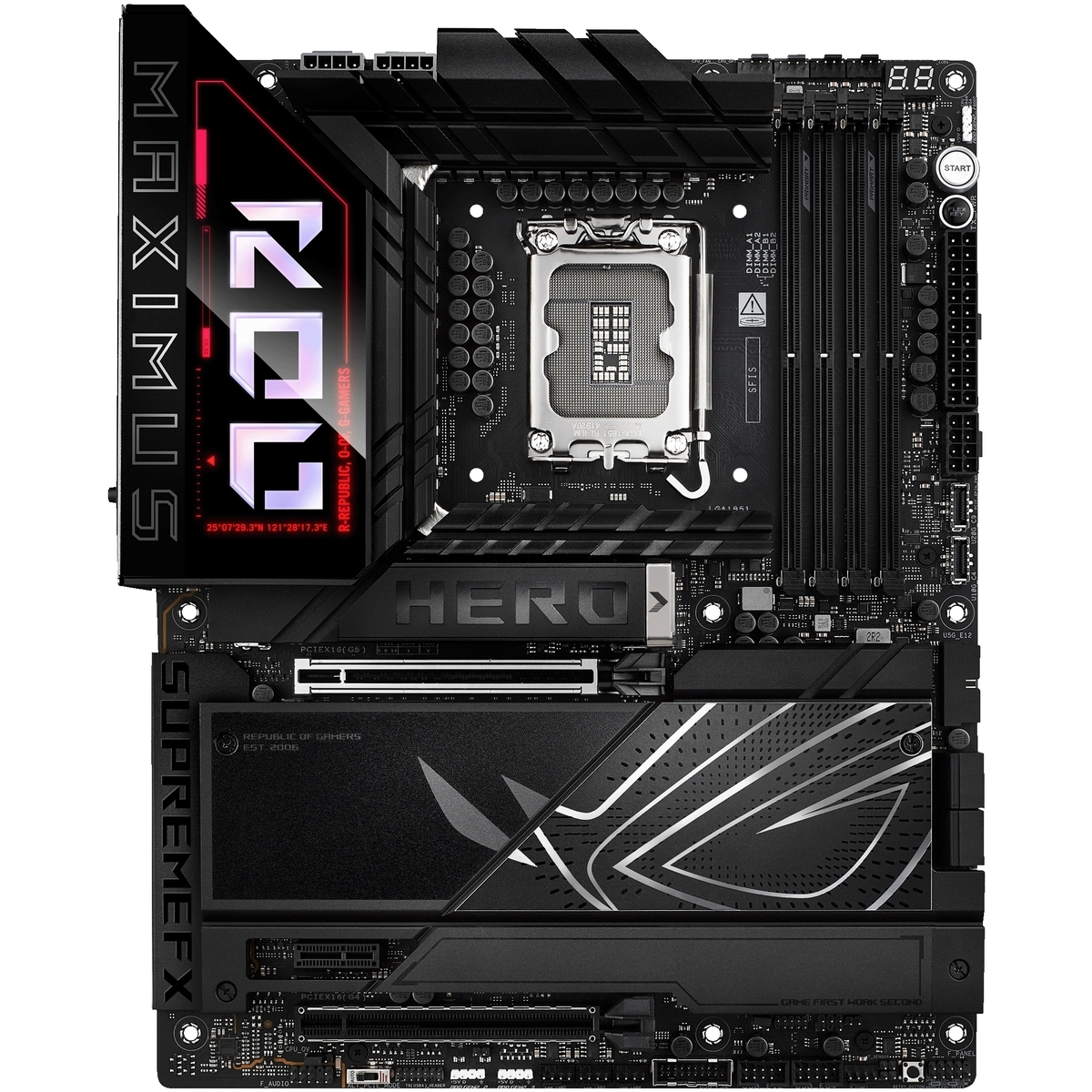

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel Core Ultra processors(Series 2)via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

Features:

ASUS AI INTELLIGENCE

• AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of  WiFi 7*.   *Features may vary by model.
• ai OVERCLOCKING Tuning is now faster and smarter than ever before.
• AI COOLING II Balance the thermals and acoustics of any build with a single click.
• ASUS AI ADVISOR Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and  straightforward way.

Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the "Channel Switch" button for improved network performance.

Fast Check
Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength.

Direction Finder
Armoury Crate's Direction Finder helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

GameFirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

ASUS AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.


Performance OVERCLOCKING

• NPU BOOST The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.   The overclocking performance may vary depending on the CPU series and motherboard used.     Testing was conducted with an Intel Core Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).  -->
• DIFFERENTIAL SENSING Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately. -->

NPU BOOST
The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

The overclocking performance may vary depending on the CPU series and motherboard used.

Testing was conducted with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).

DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

Performance MEMORY

• DDR5 DOMINATION Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus  Z890 Hero*.   *Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
• NitroPath DRAM Technology Frequency up to 400 MT/s higher Slot retention force enhanced by 57%
• DIMM FIT DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
• DIMM FLEX DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.   Results may vary according to the capabilities of your CPU, graphics card, motherboard, and memory modules. The comparison chart is based on a test with an Intel Core Ultra 5 245K processor, ROG MAXIMUS Z890 EXTREME motherboard, ROG Strix GeForce RTX 4090 OC Edition 24GB graphics card, and G.SKILL DDR5 memory modules (model F5-8800C4255H24GX2-TZ5CK).
• AEMP III ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge  CUDIMM memory.

DDR5 Strength
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Hero, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

DIMM Fit offers peak efficiency, compatibility, and system stability.
Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

DIMM FLEX
DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules. It employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings. When temperatures are nominal, it can use the extra headroom to increase speeds and efficiency. And when temperatures increase, it can adjust memory behavior downward to maintain stability.


AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.

*Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.

Power solution
ROG Ultimate  Power Solution   22(110A)+1(90A)+2(90A)+2(80A)   Power Stages

THERMAL MANAGEMENT
An extensive array of headers line the ROG Maximus Z890 Hero for precise cooling control and monitoring.

• Multiple temperature sources Each header can be set to monitor and react to user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
• 4-pin fan headers In addition to the pair of CPU fan headers, the ROG Maximus Z890 Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.
• AIO pump header An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setups.

COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z890 motherboards, empowering you to build your dream  gaming rig.


CONNECTIVITY

• M.2 SLOTS WITH ROG M.2 POWERBOOST The ROG Maximus Z890 Hero features three PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard, all of which support ROG M.2 PowerBoost to help ensure that every onboard M.2 device can operate simultaneously at optimal performance.
• PCIE 5.0 EXPANSION SLOT The primary PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim fully supports next-gen graphics cards.
• USB Ports TWO THUNDERBOLT 4 TYPE-C PORTS ONE USB 20Gbps & ONE USB 10Gbps Type-C front panel connectors
• wifi7 320 MHz 6GHz band 4096 QAM up to 4.8X ultra-fast WiFi speeds 2.5Gb ETHERNET 5Gb ETHERNET
• Gaming Audio ROG SupremeFX Dolby Atmos

SIX ONBOARD M.2 SLOTS
The ROG Maximus Z890 Hero features six onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces. It also features a SlimSAS connector, which supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.

ROG M.2 POWERBOOST
ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting all six onboard M.2 slots to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.

PCIE 5.0 EXPANSION SLOT
The primary x16 expansion slot offers PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, it is also protected with a SafeSlot retention bracket which can be released easily, thanks to PCIe Slot Q-Release Slim.

• TWO THUNDERBOLT 4 TYPE-C PORTS Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. The Thunderbolt Display function supports up to 8K with DSC. Please see specifications for more details.
• ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL CONNECTORS The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W. USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

USB Wattage Watcher
USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 20Gbps Type-C front-panel connector. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device's Fast-Charging status.

• WIFI 7 The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6, thanks to tech like 320MHz channels on the 6GHz band and 4K QAM . Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT. Learn more about Multi-link Operation (MLO) and WiFi 7 technology. *WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320MHz channels in the 6GHz band may be unavailable in some regions/countries due to regulatory restrictions. **Specifications vary by model.
• 2.5Gb ETHERNET Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5Gbps Ethernet. 5Gb ETHERNET Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

SupremeFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ASUS ROG MAXIMUS Z890 HERO
CPU	Support Intel Core Ultra Processors (Series 2), LGA1851
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z890 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5
	Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
	Dual channel memory architecture
	Supports Intel Extreme Memory Profile (XMP) memory module
	Supports DIMM Flex
	NitroPath DRAM Technology
	DIMM FIT
	ASUS Enhanced Memory Profile III (AEMP III)
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port
	2 x Intel Thunderbolt 4 ports (USB Type-C ) support DisplayPort and Thunderbolt video outputs
	* Graphics specifications may vary between CPU types.
	** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
	* In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
	** In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
	**While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel Core Ultra Processors (Series 2)
	1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
	Intel Z890 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x1 slot
	** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Storage	Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports
	Intel Core Ultra Processors (Series 2)
	M.2_1 slot (Key M), type 2242 / 2260 / 2280 / 22110 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	Intel Z890 Chipset
	M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
	* Intel Rapid Storage Technology supports PCIe RAID 0 / 1 / 5 / 10, SATA RAID 0 / 1 / 5 / 10, M.2 slot from CPU only supports RAID 0/1/5
	** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Ethernet	1 x Intel 2.5Gb Ethernet
	1 x Realtek 5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band
	Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
	Bluetooth v5.4
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
	For Windows 10, only Wi-Fi 6 is supported.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 11 ports)
	2 x Thunderbolt 4 ports (2 x USB Type-C )
	5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C )
	4 x USB 5Gbps ports (4 x Type-A)
	Front USB (Total 10 ports)
	1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)
	1 x USB 10Gbps connector (supports USB Type-C )
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C power delivery output: max. 5V/3A
	** USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback on front panel"
	Audio Features
	- SupremeFX Shielding Technology
	- ESS ES9219 QUAD DAC
	- Gold-plated audio jacks
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports	2 x Thunderbolt 4 USB Type-C ports
	5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C )
	4 x USB 5Gbps ports (4 x Type-A)
	1 x HDMI port
	1 x Wi-Fi module
	1 x Intel 2.5Gb Ethernet port
	1 x Realtek 5Gb Ethernet port
	2 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	1 x W_PUMP+ headers
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	1 x 8-pin PCIe Power connector
	Storage Related
	6 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	1 x SlimSAS connector
	USB
	1 x USB 20Gbps connector (supports USB Type-C )
	1 x USB 10Gps connector (supports USB Type-C )
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Alteration PCIe mode switch
	1 x FlexKey button
	1 x Front Panel Audio header (F_AUDIO)
	1 x ReTry button
	1 x Start button
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header
	1 x Thunderbolt (USB4 ) header
	* The Thunderbolt card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt card to the PCIEX16(G4) slot.
Special Features	Extreme OC Kit
	- FlexKey button
	- ReTry button
	- Start button
	Extreme Engine Digi+
	- 10K Black metallic capacitors
	- MicroFine alloy choke
	ASUS Q-Design
	- M.2 Q-Latch
	- M.2 Q-Release
	- M.2 Q-Slide
	- Q-Release Slim (with PCIe SafeSlot)
	- Q-Antenna
	- Q-Code
	- Q-Connector
	- Q-Dashboard
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsink
	- Metal backplate
	- VRM heatsink design
	ASUS EZ DIY
	- Backplate
	- BIOS FlashBack button
	- Clear CMOS button
	- CPU Socket lever protector
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 header(s)
	ROG M.2 PowerBoost
	Front Panel USB 20Gbps with Quick Charge 4+ Support
	- Support: up to 60W fast charging and USB Wattage Watcher
	- Output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A
	- Compatible with PD3.0 and PPS
	* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features	ROG Exclusive Software
	- ROG CPU-Z
	- Dolby Atmos
	- Polymo Lighting II
	- Internet Security (1-year full version)
	ASUS Exclusive Software
	Armoury Crate
	- AIDA64 Extreme (1 year full version)
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- GameFirst
	- Power Saving
	- Hwinfo
	ASUS AI Advisor
	ASUS DriverHub
	ASUS GlideX
	Thunderbolt Share
	USB Wattage Watcher
	TurboV Core
	Adobe Creative Cloud (Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	NPU Boost
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME
Accessories	Cables
	1 x ARGB RGB extension cable
	4 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x DDR5 fan holder
	1 x Thermal pad for M.2 22110
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x Q-connector
	1 x M.2 Q-Latch package
	3 x M.2 Q-Slide packages
	1 x ROG stickers
	6 x M.2 rubber packages
	1 x ROG thank you card
	1 x ROG Bottle Opener
	Installation Media
	1 x USB drive with utilities and drivers
	Documentation
	1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
