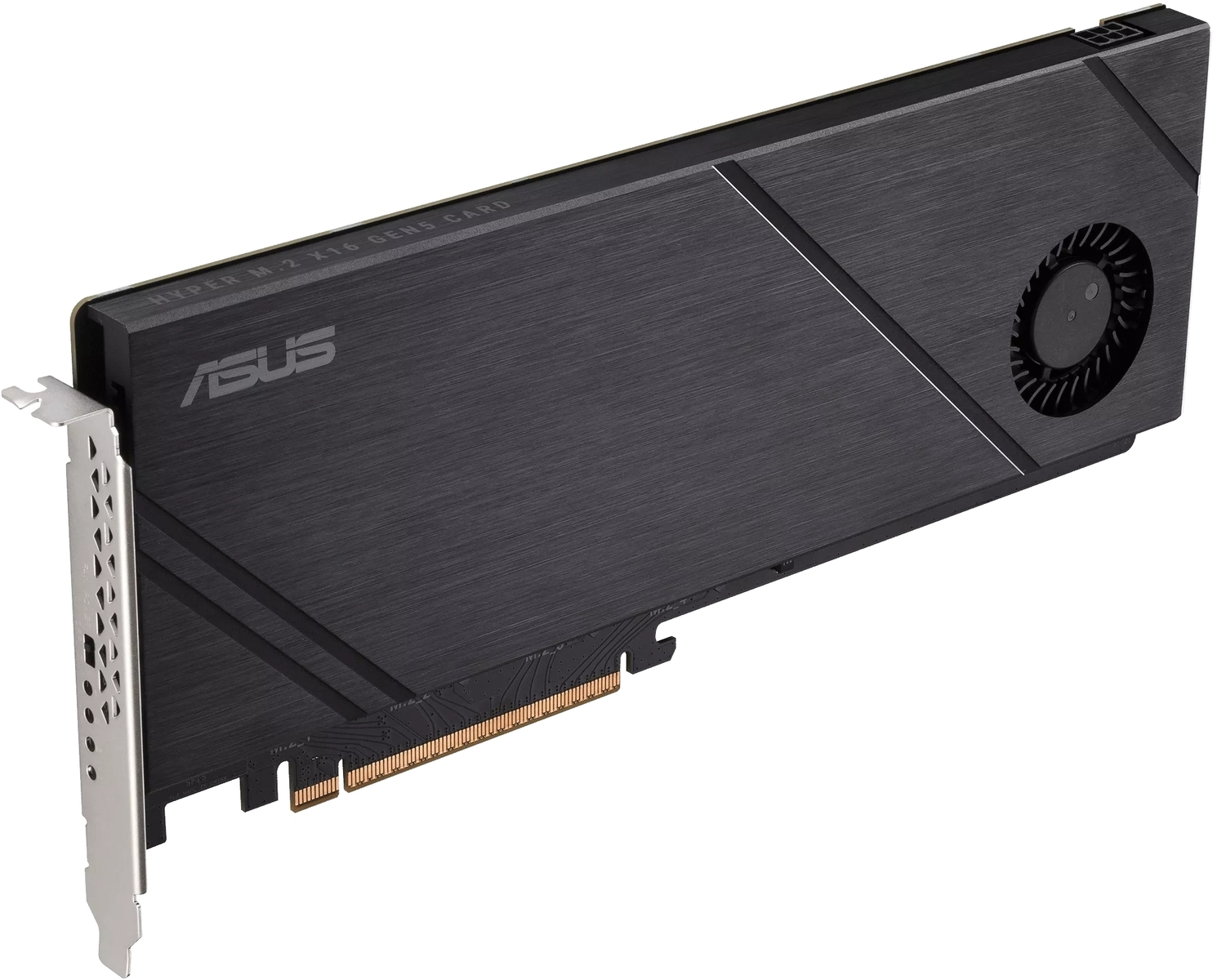

ASUS HYPER M.2 X16 GEN5 CARD

Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots

Asus - Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), Supports up to four NVMe M.2 (2242 / 2260 / 2280 / 22110) devices at up to 512Gbps for RAID, Active fan with Heatsink
BUY NOW - selling fast! Limited Stock at suppliers.* print


ASUS HYPER M.2 X16 GEN5 CARD Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots Image 2
ASUS HYPER M.2 X16 GEN5 CARD Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots Image 3
ASUS HYPER M.2 X16 GEN5 CARD Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots Image 4
ASUS HYPER M.2 X16 GEN5 CARD Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots Image 5
Not rated yet



Rate this product

Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. ASUS HYPER M.2 X16 GEN5 CARD Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots is available from Asus Laptops and it is sold as new from our External M.2 SSD enclosures range of products. For reference purposes, the price of R1600 is valid 2026-10-09, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the External M.2 SSD enclosures category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

ASUS HYPER M.2 X16 GEN5 CARD

Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), 4x M.2 slots

Asus Hyper M.2 x16 Gen5 card (PCI-e 5.0/4.0), Supports up to four NVMe M.2 (2242 / 2260 / 2280 / 22110) devices at up to 512Gbps for RAID, Active fan with Heatsink

Overview:

ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110 ) devices at up to 512 Gbps for RAID functions across diverse CPU platforms

  • 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
  • Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed
  • Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers

Features:

Support RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility, unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.

*M.2 SSD support dependent on CPU and motherboard design. Please check the specifications and user manual of your motherboard. Update to the latest BIOS and set up PCIe bifurcation settings before using the NVMe RAID function.

One Card, 8X The Bandwidth
The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card - 8X the bandwidth of a single PCIe 4.0 drive.

Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.

  • Effective Thermal Solution
  • Fan Xpert 4 Support

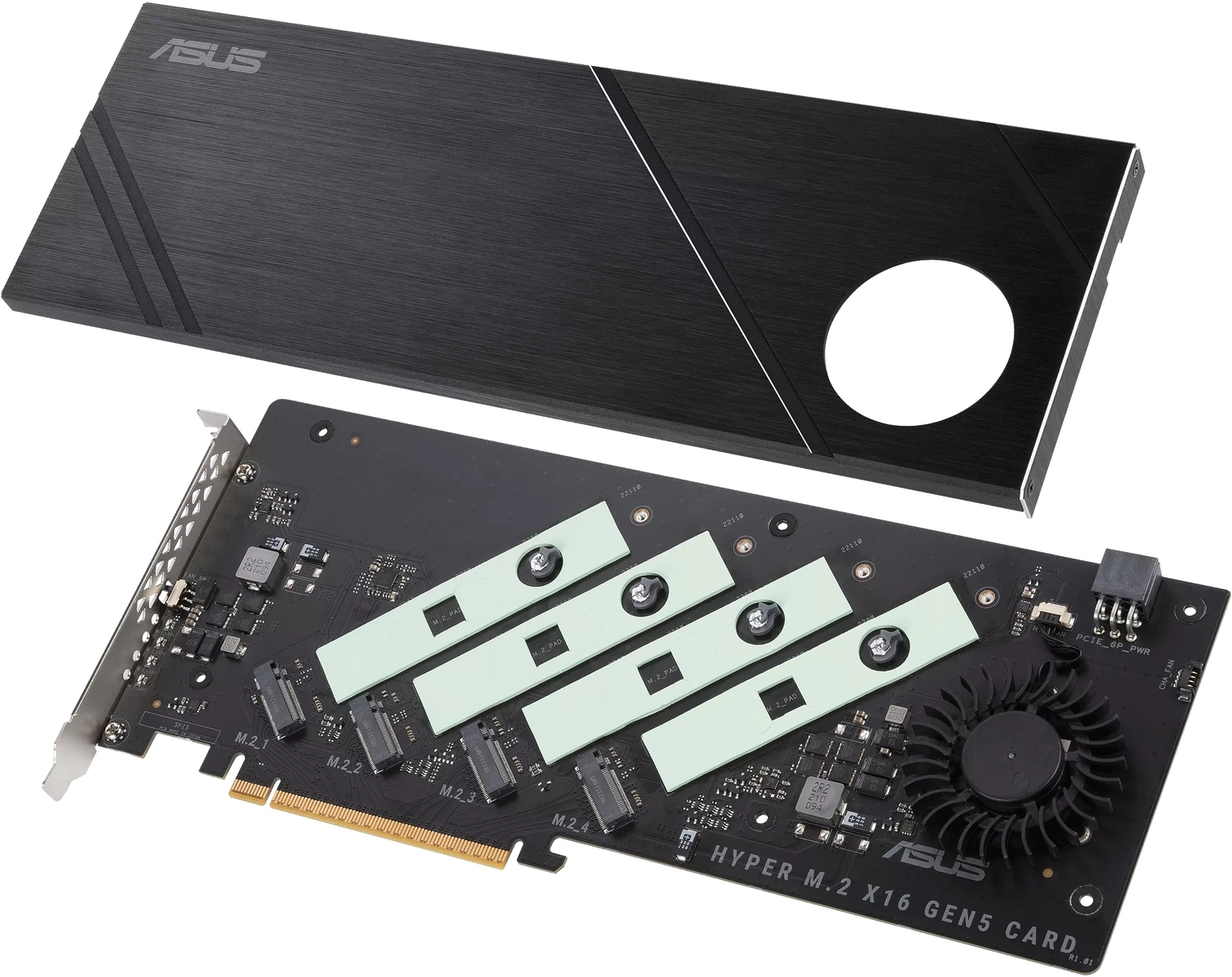

A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.

The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.

Designed For Unthrottled Transfer Speeds
The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots - supporting both PCIe 5.0 and 4.0 - that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots,providing up to 128 GT/s bandwidth per M.2 slot.

Specifications:

© 2024 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specificationsspacer
Product CodeASUS HYPER M.2 X16 GEN5 CARDspacer
Model Hyper M.2 x16 Gen5 Card
Spec PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps.
4 x M.2 slots (Key M), type 2242 / 2260 / 2280 / 22110 (supports PCIe 5.0)
* Supports PCIe M.2 storage devices only.

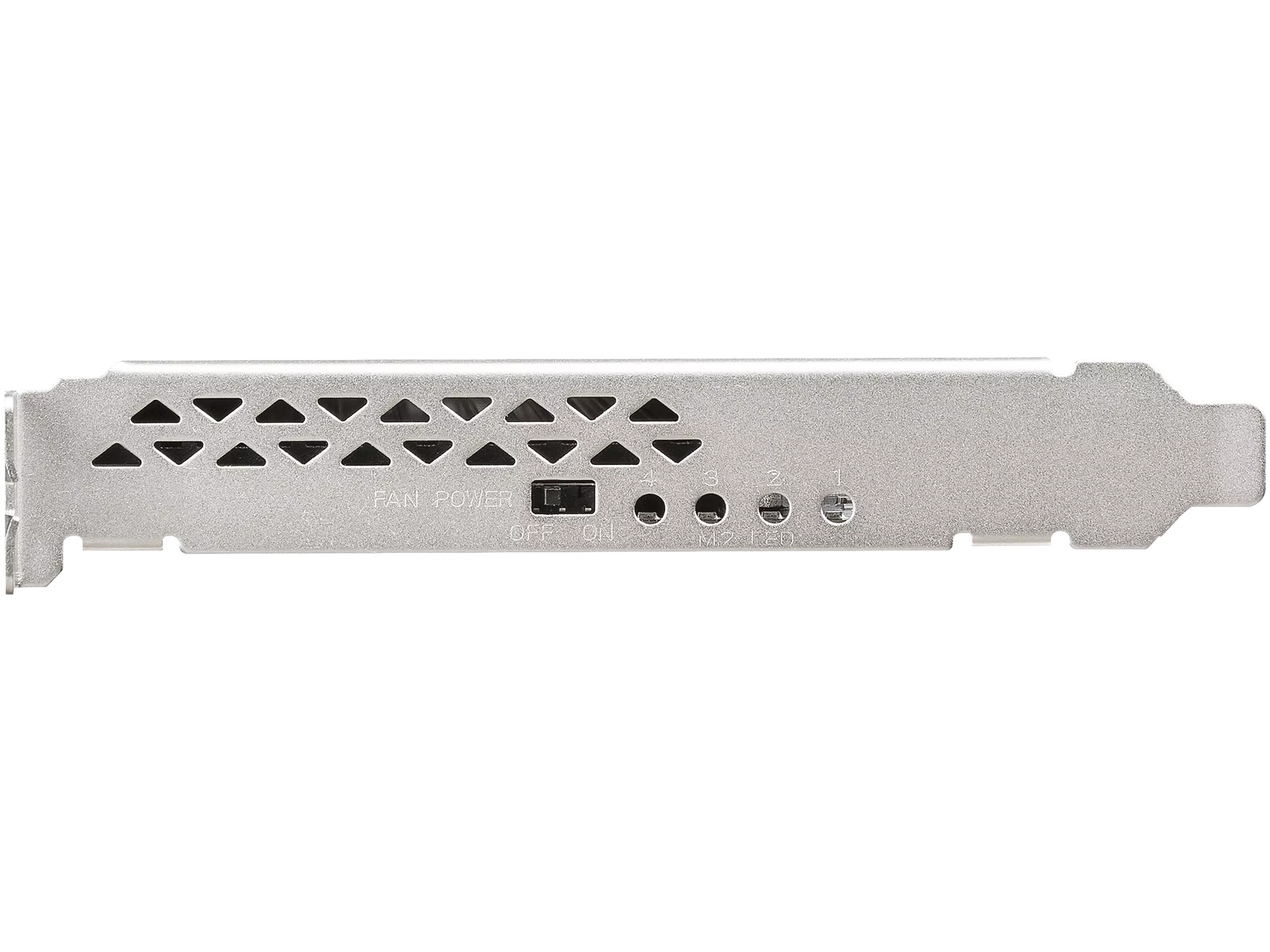

1 x M.2 FAN Power Switch
4 x M.2 access LEDs
Active fan with heatsink, support fan control from MB chassis fan header
Dimensions 29 (L)*12.2(W) *1.5(H)cm
